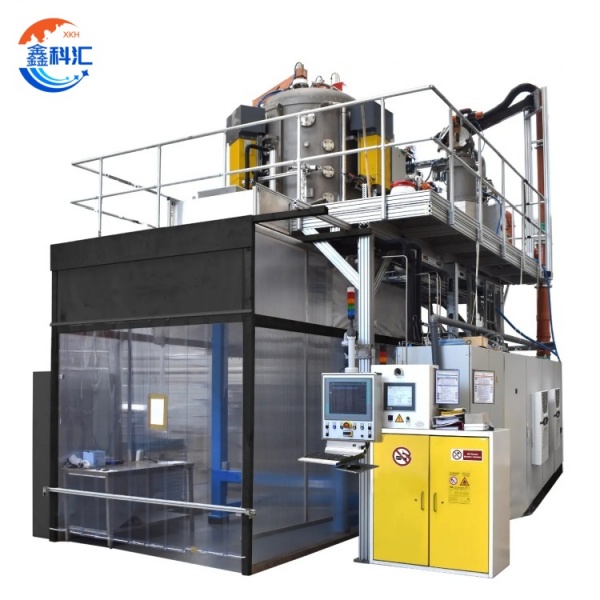

CVD method for producing high purity SiC raw materials in silicon carbide synthesis furnace at 1600℃

Short Description:

A Silicon carbide (SiC) synthesis furnace (CVD). It uses a Chemical Vapor Deposition (CVD) technology to ₄ gaseous silicon sources (e.g. SiH₄, SiCl₄) in a high temperature environment in which they react to carbon sources (e.g. C₃H₈, CH₄). A key device for growing high-purity silicon carbide crystals on a substrate (graphite or SiC seed). The technology is mainly used for preparing SiC single crystal substrate (4H/6H-SiC), which is the core process equipment for manufacturing power semiconductors (such as MOSFET, SBD).

Send email to us

Product Detail

Product Tags

Working principle：

1. Precursor supply. Silicon source (e.g. SiH₄) and carbon source (e.g. C₃H₈) gases are mixed in proportion and fed into the reaction chamber.

2. High temperature decomposition: At a high temperature of 1500~2300℃, the gas decomposition generates Si and C active atoms.

3. Surface reaction: Si and C atoms are deposited on the substrate surface to form a SiC crystal layer.

4. Crystal growth: Through the control of temperature gradient, gas flow and pressure, to achieve directional growth along the c axis or the a axis.

Key parameters:

· Temperature: 1600~2200℃ (>2000℃ for 4H-SiC)

· Pressure: 50~200mbar (low pressure to reduce gas nucleation)

· Gas ratio: Si/C≈1.0~1.2 (to avoid Si or C enrichment defects)

Main features:

(1) Crystal quality
Low defect density: microtubule density < 0.5cm ⁻², dislocation density <10⁴ cm⁻².

Polycrystalline type control: can grow 4H-SiC (mainstream), 6H-SiC, 3C-SiC and other crystal types.

(2) Equipment performance
High temperature stability: graphite induction heating or resistance heating, temperature >2300℃.

Uniformity control: temperature fluctuation ±5℃, growth rate 10~50μm/h.

Gas system: High precision mass flowmeter (MFC), gas purity ≥99.999%.

(3) Technological advantages
High purity: Background impurity concentration <10¹⁶ cm⁻³ (N, B, etc.).

Large sizing: Support 6 "/8" SiC substrate growth.

(4) Energy consumption and cost
High energy consumption (200~500kW·h per furnace), accounting for 30%~50% of the production cost of SiC substrate.

Core applications:

1. Power semiconductor substrate: SiC MOSFETs for manufacturing electric vehicles and photovoltaic inverters.

2. Rf device: 5G base station GaN-on-SiC epitaxial substrate.

3.Extreme environment devices: high temperature sensors for aerospace and nuclear power plants.

Technical specification：

Specification	Details
Dimensions (L × W × H)	4000 x 3400 x 4300 mm or customize
Furnace chamber diameter	1100mm
Loading capacity	50kg
The limit vacuum degree	10-2Pa(2h after the molecular pump starts)
Chamber pressure rise rate	≤10Pa/h(after calcination)
Lower furnace cover lifting stroke	1500mm
Heating method	Induction heating
The maximum temperature in the furnace	2400°C
Heating power supply	2X40kW
Temperature measurement	Two-color infrared temperature measurement
Temperature range	900~3000℃
Temperature control accuracy	±1°C
Control pressure range	1~700mbar
Pressure Control Accuracy	1~5mbar ±0.1mbar; 5~100mbar ±0.2mbar; 100~700mbar ±0.5mbar
Loading method	Lower loading;
Optional configuration	Double temperature measuring point, unloading forklift.

XKH Services:

XKH provides full-cycle services for silicon carbide CVD furnaces, including equipment customization (temperature zone design, gas system configuration), process development (crystal control, defect optimization), technical training (operation and maintenance) and after-sales support (spare parts supply of key components, remote diagnosis) to help customers achieve high-quality SiC substrate mass production. And provide process upgrade services to continuously improve crystal yield and growth efficiency.
